Extends upon the DialoguePanel class to create an abstract base implementation of a display for displaying dialogue options to a player. More...

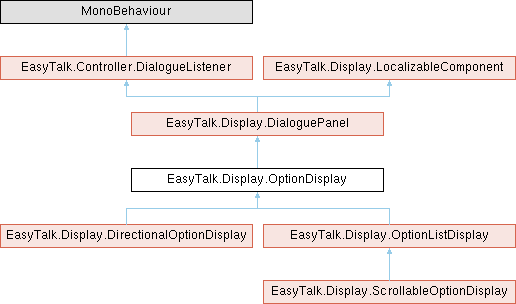

Inherits EasyTalk.Display.DialoguePanel.

Inherited by EasyTalk.Display.DirectionalOptionDisplay, and EasyTalk.Display.OptionListDisplay.

Public Member Functions
override void	Init ()
	Initializes the panel by storing the original position.

void	SetOptions (List< DialogueOption > options)
	Setup the display to show the options specified.

List< DialogueButton >	GetOptionButtons ()
	Returns a List containing all of the options buttons of the option display.

virtual bool	SelectNextOption ()
	Selects the next option (relative to the currently selected one).

virtual bool	SelectPreviousOption ()
	Selects the previous option (relative to the currently selected one).

virtual bool	SelectOptionInDirection (Vector2 direction)
	Selected the option corresponding to the specified direction and returns the option index of it. This is typically used for selecting options using a joystick, d-pad, or arrow keys.

int	GetSelectedOption ()
	Returns the index of the option currently selected.

void	ActivateButtons ()
	Activates the buttons used for selecting options.

void	DeactivateButtons ()
	Deactivates the buttons used for selecting options.

virtual void	TranslateOptions (DialogueController controller)
	Translates the text of each Dialogue Button in the option display based on the current language set on EasyTalkGameState.Instance.Language.

Public Member Functions inherited from EasyTalk.Display.DialoguePanel
void	Activate ()
	Sets the panel to be active, and recursively sets all parent game objects to be active.

void	Deactivate ()
	Makes the panel inactive.

bool	ForceStandardText ()
	Returns whether or not the panel should force standard text component usage, even when TextMesh Pro is available.

IEnumerator	WaitForAnimation ()
	Asynchronously waits for the currently running animation on this panel to complete.

virtual void	Hide (bool deactivateAfterHide=true)
	Hides the panel.

void	HideImmediately (bool deactivateAfterHide=true)
	Hides the panel immediately (doesn't use a transition animation).

void	ShowImmediately ()
	Shows the panel immediately (doesn't use a transition animation).

virtual void	Show ()
	Shows the panel.

Public Member Functions inherited from EasyTalk.Controller.DialogueListener
virtual void	OnContinue ()
	Called whenever the dialogue continues on to the next line.

virtual void	OnDisplayOptions (List< DialogueOption > options)
	Called whenever dialogue options are to be presented.

virtual void	OnOptionChosen (DialogueOption option)
	Called whenever an option is chosen from the currently presented list of options.

virtual void	OnDisplayLine (ConversationLine conversationLine)
	Called when a line of dialogue is to be presented.

virtual void	OnDialogueEntered (string entryPointName)
	Called whenever a dialogue is entered (when playback begins).

virtual void	OnDialogueExited (string exitPointName)
	Called whenever a dialogue is exited (when playback ends).

virtual void	OnExitCompleted ()
	Called at least one frame after a dialogue is exited.

virtual void	OnStory (string storyText)
	Called whenever a story node is encountered.

virtual void	OnVariableUpdated (string variableName, object value)
	Called whenever a dialogue variable value is updated.

virtual void	OnCharacterChanged (string oldCharacterName, string newCharacterName)
	Called whenever a character change is detected.

virtual void	OnAudioStarted (ConversationLine line)
	Called whenever audio starts playing for a line of dialogue.

virtual void	OnAudioCompleted (ConversationLine line, bool forceStopped)
	Called whenever audio stops playing for a line of dialogue.

virtual void	OnActivateKey (string key)
	Called whenever a key tag is present in a line of dialogue.

virtual void	Wait (float timeInSeconds)
	Called whenever the dialogue encounters a wait node.

virtual void	OnConversationEnding (ConversationLine line, Node nextNode)
	Called whenever the last line of dialogue in a conversation node is reached.

virtual void	OnNodeChanged (Node node)
	Called whenever dialogue playback moves to the next node.

virtual void	OnPause (string signal)
	Called whenever a pause node is reached during dialogue playback.

virtual void	OnAppendText (string text)
	Called whenever text is to be appended to the current dialogue's conversation text.

virtual void	OnExecuteAsyncNode (AsyncNode node)
	Called whenever an async node is encountered and needs some external class to handle its execution.

virtual void	OnWaitingForNodeEvaluation (Node asyncNode)
	Called just before an asynchronous node is executed to notify listeners that the dialogue is about to enter a waiting state.

virtual void	OnNodeEvaluationCompleted (Node asyncNode)
	Called whenever an asynchronous node's evaluation/execution has been commpleted.

Public Attributes
UnityEvent	onOptionsSet = new UnityEvent()
	An event which is triggered when the presented options are updated.

UnityEvent	onOptionSelected = new UnityEvent()
	An event which is triggered when the player selects (highlights) an option.

UnityEvent	onOptionChanged = new UnityEvent()
	An event which is triggered when the player changes the selection from one option to another.

Public Attributes inherited from EasyTalk.Display.DialoguePanel
UnityEvent	onHideStart = new UnityEvent()
	An event which is triggered whenever the panel starts being hidden.

UnityEvent	onHideComplete = new UnityEvent()
	An event which is triggered whenever the panel has finished transitioning to a hidden state.

UnityEvent	onShowStart = new UnityEvent()
	An event which is triggered whenever the panel starts being shown.

UnityEvent	onShowComplete = new UnityEvent()
	An event which is triggered whenever the panel has finished transitioning to a shown state.

Public Attributes inherited from EasyTalk.Controller.DialogueListener
bool	debugEnabled = false
	When set to true, debug logging will be shown for each method called on the listener.

UnityEvent	onContinue = new UnityEvent()
	An event which is triggered whenever the dialogue continues.

UnityEvent	onDisplayOptions = new UnityEvent()
	An event which is triggered whenever options are to be displayed to the player.

UnityEvent	onOptionChosen = new UnityEvent()
	An event which is triggered whenever the player chooses an option.

UnityEvent	onDisplayLine = new UnityEvent()
	An event which is triggered whenever a line of dialogue is to be displayed.

UnityEvent	onDialogueEntered = new UnityEvent()
	An event which is triggered whenever dialogue playback begins.

UnityEvent	onDialogueExited = new UnityEvent()
	An event which is triggered whenever dialogue playback ends.

UnityEvent	onExitCompleted = new UnityEvent()
	An event which is triggered one frame after dialogue playback ends.

UnityEvent	onStory = new UnityEvent()
	An event which is triggered whenever a story node is encountered.

UnityEvent	onVariableUpdated = new UnityEvent()
	An event which is triggered whenever a dialogue variable value is updated.

UnityEvent	onCharacterChanged = new UnityEvent()
	An event which is triggered whenever a character name change is detected.

UnityEvent	onAudioStarted = new UnityEvent()
	An event which is triggered whenever dialogue audio starts playing.

UnityEvent	onAudioCompleted = new UnityEvent()
	An event which is triggered whenever dialogue audio finishes playing.

UnityEvent	onActivateKey = new UnityEvent()
	An event which is triggered whenever a key is to be processed on a dialogue.

UnityEvent	onWait = new UnityEvent()
	An event which is triggered whenever a dialogue starts waiting for a certain period of time before continuing.

UnityEvent	onConversationEnding = new UnityEvent()
	An event which is triggered whenever the last line of dialogue in a conversation node is reached.

UnityEvent	onNodeChanged = new UnityEvent()
	An event which is triggered whenever a the dialogue flows from one node to another.

UnityEvent	onPause = new UnityEvent()
	An event which is triggered whenever the dialogue reaches a pause node, pausing and waiting for Continue() to be called.

UnityEvent	onExecuteAsyncNode = new UnityEvent()
	An event which is triggered whenever an asynchronous node must be processed.

UnityEvent	onAppendText = new UnityEvent()

UnityEvent	onWaitingForNodeCompletion = new UnityEvent()

UnityEvent	onNodeEvaluationCompleted = new UnityEvent()

Protected Member Functions
virtual void	ReadyOptions ()
	Make options available and ready for player interactions, reset the display for each option, and highlight the default/selected option.

void	OptionChosen ()
	This method should be called whenever an option is finalized as the choice the player wants to make. It will call the callback methods assigned to the onOptionChosen delegate.

virtual void	OnOptionsSet (List< DialogueOption > options)
	Calls the OnOptionsSet() method on all Option Display Listeners registered with the Option Display.

virtual void	OptionSelected (DialogueOption option)
	Calls the OnOptionSelected() method on all Option Display Listeners registered with the Option Display.

virtual void	OptionChanged (DialogueOption oldOption, DialogueOption newOption)
	Calls the OnOptionChanged() method on all Option Display Listeners registered with the Option Display.

Protected Member Functions inherited from EasyTalk.Display.DialoguePanel
IEnumerator	SlideDisplayOut (bool deactivateAfterSlide=true)
	Asynchronously slides the display out of its Canvas' bounds.

IEnumerator	SlideDisplayIn ()
	Asynchronously slides the display into its Canvas' bounds. If returnToOriginalPosition is set to true, then the panel will slide to its original position.

IEnumerator	FadeDisplayIn ()
	Asynchronously fades the display and all of its child text and image components in to their original transparency values.

IEnumerator	FadeDisplayOut (bool deactivateAfterFade=true)
	Asynchronously fades the display and all of its child text and image components out to be completely transparent.

virtual void	OnShowStart ()
	Callback for when the panel begines to be shown.

virtual void	OnShowComplete ()
	Callback for when the panel is finished being shown (when all animations are complete).

virtual void	OnHideStart ()
	Callback for when the panel begins to be hidden.

virtual void	OnHideComplete ()
	Callback for when the panel has finished being hidden (when all animations are complete).

Protected Attributes
List< Image >	images
	A list of images used to create the option display panel.

List< OptionDisplayListener >	optionDisplayListeners
	Listeners for option display events which are triggered whenever the options are displayed or the selected option changes.

Protected Attributes inherited from EasyTalk.Display.DialoguePanel
bool	forceStandardText = false
	Whether the Display uses standard Text components rather than TextMeshPro components, even with TextMeshPro installed.

Vector3	originalPosition = Vector3.zero
	The original position of the panel.

bool	isHidden = false
	Whether the panel is currently hidden.

Properties
List< Image >	Images `[get]`
	The list of images used to create the option display panel.

Properties inherited from EasyTalk.Display.DialoguePanel
string	DisplayID `[get, set]`
	Gets or sets the Display ID of the panel.

bool	IsHidden `[get]`
	Gets whether the panel is currently hidden.

Vector3	OriginalPosition `[get]`
	Gets the original position of the panel.

UIAnimator.Animation	AnimationType `[get, set]`
	Gets or sets the animation type used for showing and hiding the panel.

bool	OverrideFontSizes `[get, set]`
	Gets or sets whether the panel should override the default language-specific minimum and maximum font sizes when the language is updated.

LanguageFontOverrides	LanguageFontOverrides `[get, set]`
	Gets or sets the LanguageFontOverrides which are used to change fonts when the language is changed.

int	MinFontSize `[get, set]`
	Gets or sets the minimum font size to use.

int	MaxFontSize `[get, set]`
	Gets or sets the maximum font size to use.

Properties inherited from EasyTalk.Display.LocalizableComponent

Private Member Functions
void	Awake ()
	Initializes the display and hides it immediately.

Detailed Description

Extends upon the DialoguePanel class to create an abstract base implementation of a display for displaying dialogue options to a player.

Member Function Documentation

◆ ActivateButtons()

void EasyTalk.Display.OptionDisplay.ActivateButtons ( )

abstract

Activates the buttons used for selecting options.

◆ Awake()

void EasyTalk.Display.OptionDisplay.Awake ( )

private

Initializes the display and hides it immediately.

◆ DeactivateButtons()

void EasyTalk.Display.OptionDisplay.DeactivateButtons ( )

abstract

Deactivates the buttons used for selecting options.

◆ GetOptionButtons()

List< DialogueButton > EasyTalk.Display.OptionDisplay.GetOptionButtons ( )

abstract

Returns a List containing all of the options buttons of the option display.

Returns

◆ GetSelectedOption()

int EasyTalk.Display.OptionDisplay.GetSelectedOption ( )

abstract

Returns the index of the option currently selected.

Returns: The index of the option currently selected.

◆ Init()

override void EasyTalk.Display.OptionDisplay.Init ( )

virtual

Initializes the panel by storing the original position.

Reimplemented from EasyTalk.Display.DialoguePanel.

Reimplemented in EasyTalk.Display.OptionListDisplay.

◆ OnOptionsSet()

virtual void EasyTalk.Display.OptionDisplay.OnOptionsSet ( List< DialogueOption > options )

protectedvirtual

Calls the OnOptionsSet() method on all Option Display Listeners registered with the Option Display.

Parameters

options The List of Dialogue Options set on the Option Display.

◆ OptionChanged()

virtual void EasyTalk.Display.OptionDisplay.OptionChanged	(	DialogueOption	oldOption,
		DialogueOption	newOption )

protectedvirtual

Calls the OnOptionChanged() method on all Option Display Listeners registered with the Option Display.

Parameters

oldOption	The previously selected Dialogue Option.
newOption	The newly selected Dialogue Option.

◆ OptionChosen()

void EasyTalk.Display.OptionDisplay.OptionChosen ( )

protected

This method should be called whenever an option is finalized as the choice the player wants to make. It will call the callback methods assigned to the onOptionChosen delegate.

◆ OptionSelected()

virtual void EasyTalk.Display.OptionDisplay.OptionSelected ( DialogueOption option )

protectedvirtual

Calls the OnOptionSelected() method on all Option Display Listeners registered with the Option Display.

Parameters

option The Dialogue Option to pass to the OnOptionSelected() method of each listener.

◆ ReadyOptions()

virtual void EasyTalk.Display.OptionDisplay.ReadyOptions ( )

protectedvirtual

Make options available and ready for player interactions, reset the display for each option, and highlight the default/selected option.

Reimplemented in EasyTalk.Display.DirectionalOptionDisplay, EasyTalk.Display.OptionListDisplay, and EasyTalk.Display.ScrollableOptionDisplay.

◆ SelectNextOption()

virtual bool EasyTalk.Display.OptionDisplay.SelectNextOption ( )

virtual

Selects the next option (relative to the currently selected one).

Returns: Returns true if an option was selected; false otherwise.

Reimplemented in EasyTalk.Display.OptionListDisplay, and EasyTalk.Display.ScrollableOptionDisplay.

◆ SelectOptionInDirection()

virtual bool EasyTalk.Display.OptionDisplay.SelectOptionInDirection ( Vector2 direction )

virtual

Selected the option corresponding to the specified direction and returns the option index of it. This is typically used for selecting options using a joystick, d-pad, or arrow keys.

Parameters

direction The direction to get an option for.

Returns: Returns true if an option was selected; false otherwise.

Reimplemented in EasyTalk.Display.DirectionalOptionDisplay.

◆ SelectPreviousOption()

virtual bool EasyTalk.Display.OptionDisplay.SelectPreviousOption ( )

virtual

Selects the previous option (relative to the currently selected one).

Returns: Returns true if an option was selected; false otherwise.

Reimplemented in EasyTalk.Display.OptionListDisplay, and EasyTalk.Display.ScrollableOptionDisplay.

◆ SetOptions()

void EasyTalk.Display.OptionDisplay.SetOptions ( List< DialogueOption > options )

abstract

Setup the display to show the options specified.

Parameters

options The dialogue options the display needs to present.

◆ TranslateOptions()

virtual void EasyTalk.Display.OptionDisplay.TranslateOptions ( DialogueController controller )

virtual

Translates the text of each Dialogue Button in the option display based on the current language set on EasyTalkGameState.Instance.Language.

Parameters

controller The Dialogue Controller currently being used.

Member Data Documentation

◆ images

List<Image> EasyTalk.Display.OptionDisplay.images

protected

A list of images used to create the option display panel.

◆ onOptionChanged

UnityEvent EasyTalk.Display.OptionDisplay.onOptionChanged = new UnityEvent()

An event which is triggered when the player changes the selection from one option to another.

◆ onOptionSelected

UnityEvent EasyTalk.Display.OptionDisplay.onOptionSelected = new UnityEvent()

An event which is triggered when the player selects (highlights) an option.

◆ onOptionsSet

UnityEvent EasyTalk.Display.OptionDisplay.onOptionsSet = new UnityEvent()

An event which is triggered when the presented options are updated.

◆ optionDisplayListeners

List<OptionDisplayListener> EasyTalk.Display.OptionDisplay.optionDisplayListeners

protected

Listeners for option display events which are triggered whenever the options are displayed or the selected option changes.

Property Documentation

◆ Images

List<Image> EasyTalk.Display.OptionDisplay.Images

get

The list of images used to create the option display panel.

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Properties

Private Member Functions

Detailed Description

Member Function Documentation

◆ ActivateButtons()

◆ Awake()

◆ DeactivateButtons()

◆ GetOptionButtons()

◆ GetSelectedOption()

◆ Init()

◆ OnOptionsSet()

◆ OptionChanged()

◆ OptionChosen()

◆ OptionSelected()

◆ ReadyOptions()

◆ SelectNextOption()

◆ SelectOptionInDirection()

◆ SelectPreviousOption()

◆ SetOptions()

◆ TranslateOptions()

Member Data Documentation

◆ images

◆ onOptionChanged

◆ onOptionSelected

◆ onOptionsSet

◆ optionDisplayListeners

Property Documentation

◆ Images
