This is an implementation of a conversation display which is used to display lines of dialogue to a player in addition to the name of the character who is speaking if desired. More...

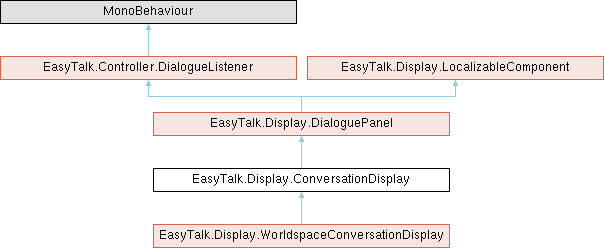

Inherits EasyTalk.Display.DialoguePanel.

Inherited by EasyTalk.Display.WorldspaceConversationDisplay.

Public Types
enum	TextDisplayMode { FULL , BY_WORD , BY_CHARACTER }
	Defines possible modes for displaying dialogue text. More...

Public Member Functions
void	ShowConversationText ()
	Activates the conversation text.

virtual void	HideConversationText ()
	Deactivates the conversation text.

void	ShowCharacterName ()
	Activates the character name text.

virtual void	HideCharacterName ()
	Deactivates the character name text.

void	SetConversationText (string text)
	Sets the value of the conversation display dialogue text element.

void	AppendText (string text)

IEnumerator	SetConversationText (ConversationLine line)
	Asynchronously sets the conversation display's dialogue text based on the text display mode to the text of the line of dialogue provided.

IEnumerator	SetConversationTextAsync (string text, float delay=0.0f)
	Asynchronously sets the displayed dialogue text based on the text display mode set on this conversation display. The delay is used to sync the timing of the text with the total time alloted to the line of dialogue (applies when the dialogue controller is in AUTOPLAY mode).

void	SetCharacterName (string characterName, string sourceName)
	Sets the character name text to display the provided character name.

void	Reset ()
	Resets the conversation display by setting the character name and conversation text to blank values.

virtual void	TranslateText (DialogueController controller)
	Translates the conversation text and character name based on the current language set on EasyTalkGameState.Instance.Language.

Public Member Functions inherited from EasyTalk.Display.DialoguePanel
virtual void	Init ()
	Initializes the panel by storing the original position.

void	Activate ()
	Sets the panel to be active, and recursively sets all parent game objects to be active.

void	Deactivate ()
	Makes the panel inactive.

bool	ForceStandardText ()

IEnumerator	WaitForAnimation ()
	Asynchronously waits for the currently running animation on this panel to complete.

virtual void	Hide (bool deactivateAfterHide=true)
	Hides the panel.

void	HideImmediately (bool deactivateAfterHide=true)
	Hides the panel immediately (doesn't use a transition animation).

void	ShowImmediately ()
	Shows the panel immediately (doesn't use a transition animation).

virtual void	Show ()
	Shows the panel.

Public Member Functions inherited from EasyTalk.Controller.DialogueListener
virtual void	OnContinue ()
	Called whenever the dialogue continues on to the next line.

virtual void	OnDisplayOptions (List< DialogueOption > options)
	Called whenever dialogue options are to be presented.

virtual void	OnOptionChosen (DialogueOption option)
	Called whenever an option is chosen from the currently presented list of options.

virtual void	OnDisplayLine (ConversationLine conversationLine)
	Called when a line of dialogue is to be presented.

virtual void	OnDialogueEntered (string entryPointName)
	Called whenever a dialogue is entered (when playback begins).

virtual void	OnDialogueExited (string exitPointName)
	Called whenever a dialogue is exited (when playback ends).

virtual void	OnExitCompleted ()
	Called at least one frame after a dialogue is exited.

virtual void	OnStory (string storyText)
	Called whenever a story node is encountered.

virtual void	OnVariableUpdated (string variableName, object value)
	Called whenever a dialogue variable value is updated.

virtual void	OnCharacterChanged (string oldCharacterName, string newCharacterName)
	Called whenever a character change is detected.

virtual void	OnAudioStarted (ConversationLine line)
	Called whenever audio starts playing for a line of dialogue.

virtual void	OnAudioCompleted (ConversationLine line, bool forceStopped)
	Called whenever audio stops playing for a line of dialogue.

virtual void	OnActivateKey (string key)
	Called whenever a key tag is present in a line of dialogue.

virtual void	Wait (float timeInSeconds)
	Called whenever the dialogue encounters a wait node.

virtual void	OnConversationEnding (ConversationLine line, Node nextNode)
	Called whenever the last line of dialogue in a conversation node is reached.

virtual void	OnNodeChanged (Node node)
	Called whenever dialogue playback moves to the next node.

virtual void	OnPause (string signal)
	Called whenever a pause node is reached during dialogue playback.

virtual void	OnExecuteAsyncNode (AsyncNode node)

virtual void	OnWaitingForNodeEvaluation (Node asyncNode)

virtual void	OnNodeEvaluationCompleted (Node asyncNode)

Protected Attributes
UnityEvent	onCharacterNameUpdated = new UnityEvent()
	An event which is triggered when the character name is updated.

UnityEvent	onConversationTextUpdated = new UnityEvent()
	An event which is triggered when the covnersation text is updated.

UnityEvent	onReset = new UnityEvent()
	An event which is triggered whenever the display is cleared out, meaning the conversation text and character name are set to empty strings.

ConversationLine	currentLine
	The current line of dialogue being displayed by the conversation display.

Protected Attributes inherited from EasyTalk.Display.DialoguePanel
bool	forceStandardText = false
	Whether the Display uses standard Text components rather than TextMeshPro components, even with TextMeshPro installed.

Vector3	originalPosition = Vector3.zero
	The original position of the panel.

bool	isHidden = false
	Whether the panel is currently hidden.

Properties
Text	StandardCharacterNameText `[get, set]`
	Gets or sets the standard Unity Text component of the display for the character name.

Image	CharacterNameBackgroundImage `[get]`
	Gets the image used for the character name panel.

Text	StandardConvoText `[get, set]`
	Gets or sets the standard Unity Text component of the display.

List< Image >	ConversationPanelImages `[get]`
	Gets the List of images used for the conversation display panel.

TextDisplayMode	TextPresentationMode `[get, set]`
	Gets or sets the display mode used for dialogue text.

float	WordsPerSecond `[get, set]`
	Gets or sets the number of words per second to display when displaying dialogue in BY_WORD mode.

float	CharactersPerSecond `[get, set]`
	Gets or sets the number of characters per second to display when displaying dialogue in BY_CHARACTER mode.

Properties inherited from EasyTalk.Display.DialoguePanel
string	DisplayID `[get, set]`
	Gets or sets the Display ID of the panel.

bool	IsHidden `[get]`
	Gets whether the panel is currently hidden.

Vector3	OriginalPosition `[get]`
	Gets the original position of the panel.

UIAnimator.Animation	AnimationType `[get, set]`
	Gets or sets the animation type used for showing and hiding the panel.

bool	OverrideFontSizes `[get, set]`
	Gets or sets whether the component should override the default font sizes.

LanguageFontOverrides	LanguageFontOverrides `[get, set]`
	Gets or sets the LanguageFontOverrides to use on the component.

int	MinFontSize `[get, set]`
	Gets or sets the minimum font size to use on the component.

int	MaxFontSize `[get, set]`
	Gets or sets the maximum font size to use on the component.

Properties inherited from EasyTalk.Display.LocalizableComponent

Private Member Functions
void	Awake ()
	Initializes the display and hides it on awake.

IEnumerator	SetConversationTextByWord (string text, float delay)
	Updates the displayed dialogue text by displaying one word at a time, using a specific delay per word.

IEnumerator	SetConversationTextByCharacter (string text, float delay)
	Updates the displayed dialogue text by displaying one character at a time, using a specific delay per character.

Private Attributes
Text	characterNameText
	The text element used to display the character name.

Image	characterNameBackgroundImage
	The background image of the character name display.

Text	convoText
	The text element used to display lines of dialogue.

TextDisplayMode	textDisplayMode = TextDisplayMode.FULL
	The display mode of the dialogue text.

float	wordsPerSecond = 5.0f
	When the text display mode is set to BY_WORD, this value controls how many words are displayed per second.

float	charactersPerSecond = 20.0f
	When the text display mode is set to BY_CHARACTER, this value controls how many characters are displayed per second.

List< Image >	conversationPanelImages = new List<Image>()
	The images used to create the conversation display panel.

bool	hideOnAwake = true
	Whether the conversation display should be hidden on awake.

List< ConversationDisplayListener >	conversationDisplayListeners = new List<ConversationDisplayListener>()
	Listeners for conversation display events which are triggered whenever the character name is updated or the conversation text is updated.

Additional Inherited Members
Public Attributes inherited from EasyTalk.Display.DialoguePanel
UnityEvent	onHideStart = new UnityEvent()
	An event which is triggered whenever the panel starts being hidden.

UnityEvent	onHideComplete = new UnityEvent()
	An event which is triggered whenever the panel has finished transitioning to a hidden state.

UnityEvent	onShowStart = new UnityEvent()
	An event which is triggered whenever the panel starts being shown.

UnityEvent	onShowComplete = new UnityEvent()
	An event which is triggered whenever the panel has finished transitioning to a shown state.

Public Attributes inherited from EasyTalk.Controller.DialogueListener
bool	debugEnabled = false
	When set to true, debug logging will be shown for each method called on the listener.

UnityEvent	onContinue = new UnityEvent()
	An event which is triggered whenever the dialogue continues.

UnityEvent	onDisplayOptions = new UnityEvent()
	An event which is triggered whenever options are to be displayed to the player.

UnityEvent	onOptionChosen = new UnityEvent()
	An event which is triggered whenever the player chooses an option.

UnityEvent	onDisplayLine = new UnityEvent()
	An event which is triggered whenever a line of dialogue is to be displayed.

UnityEvent	onDialogueEntered = new UnityEvent()
	An event which is triggered whenever dialogue playback begins.

UnityEvent	onDialogueExited = new UnityEvent()
	An event which is triggered whenever dialogue playback ends.

UnityEvent	onExitCompleted = new UnityEvent()
	An event which is triggered one frame after dialogue playback ends.

UnityEvent	onStory = new UnityEvent()
	An event which is triggered whenever a story node is encountered.

UnityEvent	onVariableUpdated = new UnityEvent()
	An event which is triggered whenever a dialogue variable value is updated.

UnityEvent	onCharacterChanged = new UnityEvent()
	An event which is triggered whenever a character name change is detected.

UnityEvent	onAudioStarted = new UnityEvent()
	An event which is triggered whenever dialogue audio starts playing.

UnityEvent	onAudioCompleted = new UnityEvent()
	An event which is triggered whenever dialogue audio finishes playing.

UnityEvent	onActivateKey = new UnityEvent()
	An event which is triggered whenever a key is to be processed on a dialogue.

UnityEvent	onWait = new UnityEvent()
	An event which is triggered whenever a dialogue starts waiting for a certain period of time before continuing.

UnityEvent	onConversationEnding = new UnityEvent()
	An event which is triggered whenever the last line of dialogue in a conversation node is reached.

UnityEvent	onNodeChanged = new UnityEvent()
	An event which is triggered whenever a the dialogue flows from one node to another.

UnityEvent	onPause = new UnityEvent()
	An event which is triggered whenever the dialogue reaches a pause node, pausing and waiting for Continue() to be called.

UnityEvent	onExecuteAsyncNode = new UnityEvent()

UnityEvent	onWaitingForNodeCompletion = new UnityEvent()

UnityEvent	onNodeEvaluationCompleted = new UnityEvent()

Protected Member Functions inherited from EasyTalk.Display.DialoguePanel
IEnumerator	SlideDisplayOut (bool deactivateAfterSlide=true)
	Asynchronously slides the display out of its Canvas' bounds.

IEnumerator	SlideDisplayIn ()
	Asynchronously slides the display into its Canvas' bounds. If returnToOriginalPosition is set to true, then the panel will slide to its original position.

IEnumerator	FadeDisplayIn ()
	Asynchronously fades the display and all of its child text and image components in to their original transparency values.

IEnumerator	FadeDisplayOut (bool deactivateAfterFade=true)
	Asynchronously fades the display and all of its child text and image components out to be completely transparent.

Detailed Description

This is an implementation of a conversation display which is used to display lines of dialogue to a player in addition to the name of the character who is speaking if desired.

Member Enumeration Documentation

◆ TextDisplayMode

enum EasyTalk.Display.ConversationDisplay.TextDisplayMode

Defines possible modes for displaying dialogue text.

Enumerator
FULL
BY_WORD
BY_CHARACTER

Member Function Documentation

◆ AppendText()

void EasyTalk.Display.ConversationDisplay.AppendText ( string text )

◆ Awake()

void EasyTalk.Display.ConversationDisplay.Awake ( )

private

Initializes the display and hides it on awake.

◆ HideCharacterName()

virtual void EasyTalk.Display.ConversationDisplay.HideCharacterName ( )

virtual

Deactivates the character name text.

◆ HideConversationText()

virtual void EasyTalk.Display.ConversationDisplay.HideConversationText ( )

virtual

Deactivates the conversation text.

◆ Reset()

void EasyTalk.Display.ConversationDisplay.Reset ( )

Resets the conversation display by setting the character name and conversation text to blank values.

◆ SetCharacterName()

void EasyTalk.Display.ConversationDisplay.SetCharacterName	(	string	characterName,
		string	sourceName )

Sets the character name text to display the provided character name.

Parameters

characterName	The character name to use on the display.
sourceName	The original character name (pre-translation).

◆ SetConversationText() [1/2]

IEnumerator EasyTalk.Display.ConversationDisplay.SetConversationText ( ConversationLine line )

Asynchronously sets the conversation display's dialogue text based on the text display mode to the text of the line of dialogue provided.

Parameters

line	The line of dialogue to use when setting the displayed dialogue text.

Returns

◆ SetConversationText() [2/2]

void EasyTalk.Display.ConversationDisplay.SetConversationText ( string text )

Sets the value of the conversation display dialogue text element.

Parameters

text	The text to use.

◆ SetConversationTextAsync()

IEnumerator EasyTalk.Display.ConversationDisplay.SetConversationTextAsync	(	string	text,
		float	delay = 0::0f )

Asynchronously sets the displayed dialogue text based on the text display mode set on this conversation display. The delay is used to sync the timing of the text with the total time alloted to the line of dialogue (applies when the dialogue controller is in AUTOPLAY mode).

Parameters

text	The text to set.
delay	A delay added each time the text is updated when in BY_WORD or BY_CHARACTER mode.

Returns

◆ SetConversationTextByCharacter()

IEnumerator EasyTalk.Display.ConversationDisplay.SetConversationTextByCharacter	(	string	text,
		float	delay )

private

Updates the displayed dialogue text by displaying one character at a time, using a specific delay per character.

Parameters

text	The full text to display.
delay	The delay to use between characters.

Returns

◆ SetConversationTextByWord()

IEnumerator EasyTalk.Display.ConversationDisplay.SetConversationTextByWord	(	string	text,
		float	delay )

private

Updates the displayed dialogue text by displaying one word at a time, using a specific delay per word.

Parameters

text	The full text to display.
delay	The delay to use between words.

Returns

◆ ShowCharacterName()

void EasyTalk.Display.ConversationDisplay.ShowCharacterName ( )

Activates the character name text.

◆ ShowConversationText()

void EasyTalk.Display.ConversationDisplay.ShowConversationText ( )

Activates the conversation text.

◆ TranslateText()

virtual void EasyTalk.Display.ConversationDisplay.TranslateText ( DialogueController controller )

virtual

Translates the conversation text and character name based on the current language set on EasyTalkGameState.Instance.Language.

Parameters

controller The Dialogue Controller being used.

Member Data Documentation

◆ characterNameBackgroundImage

Image EasyTalk.Display.ConversationDisplay.characterNameBackgroundImage

private

The background image of the character name display.

◆ characterNameText

Text EasyTalk.Display.ConversationDisplay.characterNameText

private

The text element used to display the character name.

◆ charactersPerSecond

float EasyTalk.Display.ConversationDisplay.charactersPerSecond = 20.0f

private

When the text display mode is set to BY_CHARACTER, this value controls how many characters are displayed per second.

◆ conversationDisplayListeners

List<ConversationDisplayListener> EasyTalk.Display.ConversationDisplay.conversationDisplayListeners = new List<ConversationDisplayListener>()

private

Listeners for conversation display events which are triggered whenever the character name is updated or the conversation text is updated.

◆ conversationPanelImages

List<Image> EasyTalk.Display.ConversationDisplay.conversationPanelImages = new List<Image>()

private

The images used to create the conversation display panel.

◆ convoText

Text EasyTalk.Display.ConversationDisplay.convoText

private

The text element used to display lines of dialogue.

◆ currentLine

ConversationLine EasyTalk.Display.ConversationDisplay.currentLine

protected

The current line of dialogue being displayed by the conversation display.

◆ hideOnAwake

bool EasyTalk.Display.ConversationDisplay.hideOnAwake = true

private

Whether the conversation display should be hidden on awake.

◆ onCharacterNameUpdated

UnityEvent EasyTalk.Display.ConversationDisplay.onCharacterNameUpdated = new UnityEvent()

protected

An event which is triggered when the character name is updated.

◆ onConversationTextUpdated

UnityEvent EasyTalk.Display.ConversationDisplay.onConversationTextUpdated = new UnityEvent()

protected

An event which is triggered when the covnersation text is updated.

◆ onReset

UnityEvent EasyTalk.Display.ConversationDisplay.onReset = new UnityEvent()

protected

An event which is triggered whenever the display is cleared out, meaning the conversation text and character name are set to empty strings.

◆ textDisplayMode

TextDisplayMode EasyTalk.Display.ConversationDisplay.textDisplayMode = TextDisplayMode.FULL

private

The display mode of the dialogue text.

◆ wordsPerSecond

float EasyTalk.Display.ConversationDisplay.wordsPerSecond = 5.0f

private

When the text display mode is set to BY_WORD, this value controls how many words are displayed per second.

Property Documentation

◆ CharacterNameBackgroundImage

Image EasyTalk.Display.ConversationDisplay.CharacterNameBackgroundImage

get

Gets the image used for the character name panel.

◆ CharactersPerSecond

float EasyTalk.Display.ConversationDisplay.CharactersPerSecond

getset

Gets or sets the number of characters per second to display when displaying dialogue in BY_CHARACTER mode.

◆ ConversationPanelImages

List<Image> EasyTalk.Display.ConversationDisplay.ConversationPanelImages

get

Gets the List of images used for the conversation display panel.

◆ StandardCharacterNameText

Text EasyTalk.Display.ConversationDisplay.StandardCharacterNameText

getset

Gets or sets the standard Unity Text component of the display for the character name.

◆ StandardConvoText

Text EasyTalk.Display.ConversationDisplay.StandardConvoText

getset

Gets or sets the standard Unity Text component of the display.

◆ TextPresentationMode

TextDisplayMode EasyTalk.Display.ConversationDisplay.TextPresentationMode

getset

Gets or sets the display mode used for dialogue text.

◆ WordsPerSecond

float EasyTalk.Display.ConversationDisplay.WordsPerSecond

getset

Gets or sets the number of words per second to display when displaying dialogue in BY_WORD mode.

Public Types

Public Member Functions

Protected Attributes

Properties

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TextDisplayMode

Member Function Documentation

◆ AppendText()

◆ Awake()

◆ HideCharacterName()

◆ HideConversationText()

◆ Reset()

◆ SetCharacterName()

◆ SetConversationText() [1/2]

◆ SetConversationText() [2/2]

◆ SetConversationTextAsync()

◆ SetConversationTextByCharacter()

◆ SetConversationTextByWord()

◆ ShowCharacterName()

◆ ShowConversationText()

◆ TranslateText()

Member Data Documentation

◆ characterNameBackgroundImage

◆ characterNameText

◆ charactersPerSecond

◆ conversationDisplayListeners

◆ conversationPanelImages

◆ convoText

◆ currentLine

◆ hideOnAwake

◆ onCharacterNameUpdated

◆ onConversationTextUpdated

◆ onReset

◆ textDisplayMode

◆ wordsPerSecond

Property Documentation

◆ CharacterNameBackgroundImage

◆ CharactersPerSecond

◆ ConversationPanelImages

◆ StandardCharacterNameText

◆ StandardConvoText

◆ TextPresentationMode

◆ WordsPerSecond
